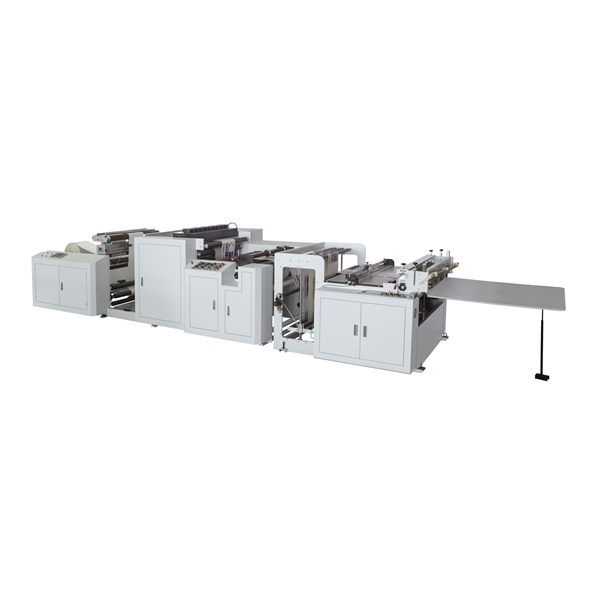

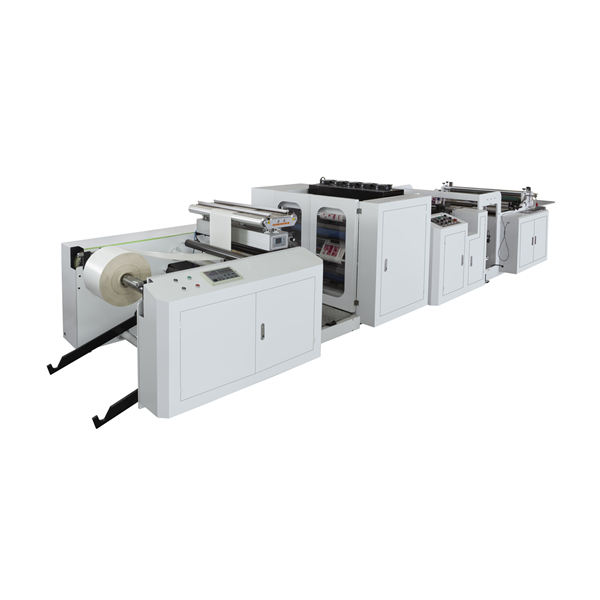

Inline Flexo Printing Machine Paper Roll to Sheet Cutting Machine
More videos check here!
Sample Pictures:
Details: customized service is available
Machine Introduction:
It is a highly efficient machine for printing roll paper, especially for thin paper, wrapping paper.
Main Features:
1. Ultra-short distance from feeding to receiving.
2. The self-developed special scraper makes up for the high-speed flying ink and reduces the volatilization of the solvent in the air.
3. Repeated printing length 300~1000MM.
4. Adopt manual color registration, accurate color registration and stable printing.
5. Infrared drying design. Avoid rubbing when ink is not dry easily.
6. 1 color to 12 colors can be customized according to your need.
Main Technical Parameters:
| Printing Machine Technical Specification | ||
| 1 | Printing color | 1 color / 2 color / 3 color / 4 colour |
| 2 | Type of printing | label flexo printing stack type or unit type |
| 3 | Suitable material | roll paper |
| 4 | Material feeding width | 800mm / 1000mm / 1300mm … (according to your material) |
| 5 | Max. material width | 800mm / 1000mm / 1300mm … |
| 6 | Max. printing width | 760mm / 960mm / 1260mm … |
| 7 | Printing length | 300 ~ 1000mm (customized is available) |
| 8 | Maximum Machine speed | 80 m/min (160 m/min is available) |
| 9 | Printing speed | 10~70 m/min (depending on the raw material, ink, etc. 10~150 m/min speed is available) |
| 10 | Plate thickness | 1.7mm / 2.28mm / 3.94mm (customized is available) |
| 11 | Suitable Ink | water based ink / solvent based ink / UV ink |
| 12 | Register adjustment method | by manual |
| 13 | Register precision | Longitude：±0.15mm
Transverse：±0.15mm |
| 14 | Heating method | electricity heating |
| 15 | Power supply voltage | 3 phase 380V，50Hz (customized is available) |
Please note: suntone company is continuously seeking for development of products. For this reason, suntone reserves the right to supply the improved product without advance notice.
| Roll to Sheet Cross Cutting Machine Technical Specification | ||
| 1 | Suitable material | roll paper |
| 2 | Paper thickness | 28 to 300gsm |
| 3 | Max. Unwind width | 800 to 1600mm |
| 4 | Max. Unwind Dia. | 1000mm |
| 5 | Max. Machine speed | 150cuts/min |
| 6 | Cutting length range | 50 to 600mm |
| 7 | Cutting precision | ≤±0.2mm |
| 8 | Max. Pile height | 200mm |
| 9 | Air request | 0.6Mpa to 0.8Mpa |
| 10 | Voltage request | 3 phase 380V，50Hz (customized is available) |
Please note: suntone company is continuously seeking for development of products. For this reason, suntone reserves the right to supply the improved product without advance notice.
paper flexo printing machine, paper printing machine, wrapping paper printing machine, flexo paper printing machine, label flexo printing machine, flexo printing machine, printing inline with sheet cutting machine, paper roll to sheet cutting machine, paper reel to sheet cutting machine, paper roll cutting machine manufacturers, roll to sheet cutting machine for food package paper, hamburger paper cutting machine, sandwich paper cutting machine,
Optional (additional fee required):
Please consult us for this information
| Storage unit | Storage unit with web guide |
Product Production Process:
What Sets Us Apart:
What Does The Clients Say:
Packaging & Delivery:
FAQ:
Q: What’s the price of machines?
A: Pls provide following information:
1) The photo of printing sample.
2) What material to print for?
3) How many color does your product need?
4) How much of your material width?
5) How much the maximum diameter and weight of roll material?
